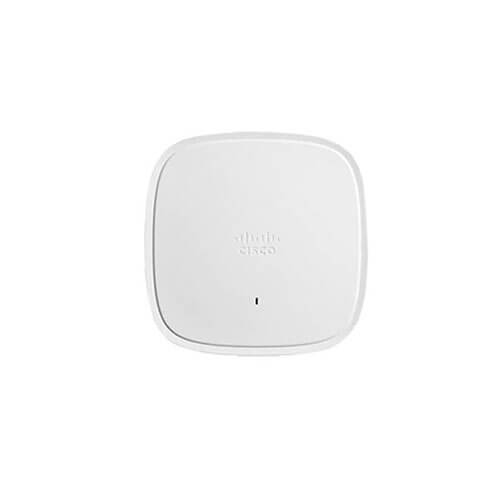

C9120AXI-S
18.730.008₫
C9120AXI-S là điểm truy cập không dây trong nhà thuộc dòng Wifi Cisco 9100 Series, được trang bị ăng-ten bên trong, hỗ trợ chuẩn Wi-Fi 6 với công nghệ 4×4 MIMO và dành cho miền quy định S Domain. Đây là điểm truy cập thế hệ tiếp theo linh hoạt nhất ở cấp doanh nghiệp, nổi bật với độ bền cao, tính ổn định và khả năng thông minh. C9120AXI-S sở hữu nhiều tính năng cấp doanh nghiệp, đáp ứng hiệu quả các nhu cầu vận hành mạng quan trọng và nâng cao trải nghiệm người dùng.
| Part Number | C9120AXI-S |
| Description | Cisco Catalyst 9120AX Access Point, internal antennas; Wi-Fi 6; 4×4:4 MIMO |
| Software | ● Cisco Unified Wireless Network Software Release 8.9.x or later● Cisco IOS ® XE Software Release 16.11 with AP Device Pack, or later |
| Supported wireless LAN controllers | ● Cisco Catalyst 9800 Series Wireless Controllers● Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller |
| 802.11n version 2.0 (and related) capabilities | ● 4×4 MIMO with four spatial streams● Maximal Ratio Combining (MRC)
● 802.11n and 802.11a/g beamforming ● 20- and 40-MHz channels ● PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic Shift Diversity (CSD) support |
| 802.11ac | ● 4×4 downlink MU-MIMO with four spatial streams● MRC
● 802.11ac beamforming ● 20-, 40-, 80-, and 160-MHz channels ● PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 DFS ● CSD support |
| 802.11ax | ● 4×4 downlink MU-MIMO with four spatial streams● Uplink/downlink OFDMA
● TWT ● BSS coloring ● MRC ● 802.11ax beamforming ● 20-, 40-, 80-, and 160-MHz channels ● PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 DFS ● CSD support |
| Integrated antenna | Flexible radio (either on 2.4GHz or on 5GHz)● 2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth
● 5 GHz, peak gain 5 dBi, internal antenna, omnidirectional in azimuth Dedicated 5GHz radio ● 5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth |
| External antenna (sold separately) | ● Cisco Catalyst 9120E Access Points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)● Cisco Catalyst 9120P Access Points) are certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz) with the AIR-ANT2513-P4M-N= antenna
● Cisco offers the industry’s broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios ● Supports Self-Identifiable Antennas (SIA) on one RP-TNC port |
| Smart Antenna Connector | ● Available on the 9120E and on the 9120P only● Compact multi RF connector with DART interface
● Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector when used with antennas with RP-TNC connector ● Required when running the flexible radio as either a second 5-GHz serving radio or a Wireless Security Monitoring radio |
| Interfaces | ● 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz● Management console port (RJ-45)
● USB 2.0 @ 3.75W (enabled via future software) |
| Indicators | ● Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Dimensions (W x L x H) | ● Access point (without mounting brackets): C9120I: 8.5 x 8.5 x 1.7” (21.6 x 21.6 x 4.3 cm) |
| Input power requirements | ● 802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE ®)● Cisco power injector, AIR-PWRINJ6=
● 802.3af PoE ● Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af) |
| Environmental | Cisco Catalyst 9120AXI● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
● Nonoperating (storage) altitude test: 25˚C, 15,000 ft. ● Operating temperature: 32° to 122°F (0° to 50°C) ● Operating humidity: 10% to 90% (noncondensing) ● Operating altitude test: 40˚C, 9843 ft. |
| System memory | ● 2048 MB DRAM● 1024 MB flash |
| Available transmit power settings | 2.4 GHz● 23 dBm (200 mW)
● 20 dBm (100 mW) ● 17 dBm (50 mW) ● 14 dBm (25 mW) ● 11 dBm (12.5 mW) ● 8 dBm (6.25 mW) ● 5 dBm (3.13 mW) ● 2 dBm (1.56 mW) ● -1dBm (0.79mW) ● -4dBm(0.39mW) 5 GHz ● 26 dBm (400 mW) ● 23 dBm (200 mW) ● 20 dBm (100 mW) ● 17 dBm (50 mW) ● 14 dBm (25 mW) ● 11 dBm (12.5 mW) ● 8 dBm (6.25 mW) ● 5 dBm (3.13 mW) ● 2 dBm (1.56 mW) ● -1dBm (0.79mW) |
