MR36-HW

Name: MR36-HW - Navicomtech
SKU: MR36-HW
Price: 6048000 VND
Availability: InStock

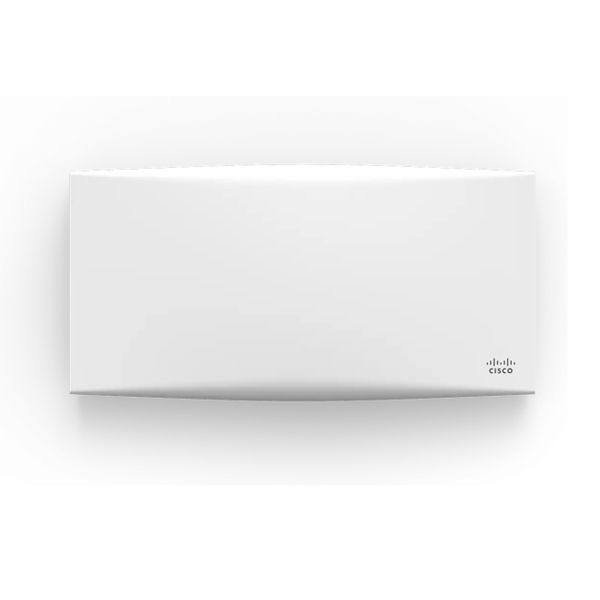

Meraki MR36 Wi-Fi 6 Indoor AP

6.048.000₫

Mã SP: MR36-HW

Thương hiệu: CISCO

6.048.000đ(Giá đã bao gồm VAT)

Mô tả sản phẩm

Cisco Meraki MR36 là điểm truy cập không dây chuẩn 802.11ax với cấu hình 2×2:2 MU-MIMO, được quản lý qua nền tảng đám mây, giúp cải thiện hiệu suất và hiệu quả mạng không dây. Thiết bị được thiết kế cho việc triển khai trong các môi trường như văn phòng, trường học, bệnh viện, cửa hàng và khách sạn, mang lại băng thông cao, bảo mật cấp doanh nghiệp và quản lý dễ dàng.

MR36 đạt tốc độ tổng hợp lên đến 1,7 Gbps trên hai băng tần 2,4 GHz và 5 GHz đồng thời. Ngoài ra, thiết bị còn tích hợp một đài phát thanh chuyên dụng thứ ba hỗ trợ WIDS/WIPS thời gian thực với tối ưu hóa RF tự động, cùng đài phát thanh thứ tư cung cấp chức năng quét và phát tín hiệu Bluetooth.

Thông số kỹ thuật

Radios	2.4 GHz 802.11b/g/n/ax client access radio 5 GHz 802.11a/n/ac/ax client access radio 2.4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics radio 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support Concurrent operation of all four radios Supported frequency bands (country-specific restrictions apply) Supported frequency bands (country-specific restrictions apply): 2.412-2.484 GHz 5.150-5.250 GHz (UNII-1) 5.250-5.350 GHZ (UNII-2) 5.470-5.600, 5.660-5.725 GHz (UNII-2e) 5.725 -5.825 GHz (UNII-3)
Antenna	Internal Antenna (5.4 dBi gain at 2.4 GHz, 6 dBi gain at 5 GHz)
802.11ax, 802.11ac Wave 2 and 802.11n Capabilities	DL-OFDMA, UL-OFDMA, TWT support, BSS Coloring 2 x 2 multiple input, multiple output (MIMO) with two spatial streams SU-MIMO, UL MU-MIMO** and DL MU-MIMO support Maximal ratio combining (MRC) & beamforming 20 and 40 MHz channels (802.11n); 20, 40, and 80 MHz channels (802.11ac Wave 2); 20, 40 and 80 MHz channels (802.11ax) Up to 1024-QAM on both 2.4 GHz & 5 GHz bands Packet aggregation
Power	Power over Ethernet: 37 – 57 V (802.3af compatible) Alternative: 12 V DC input Power consumption: 15W max (802.3at) Power over Ethernet injector and DC adapter sold separately
Interfaces	1x 10/100/1000 BASE-T Ethernet (RJ45) 1x DC power connector (5.5 mm x 2.5 mm, center positive)
Mounting	All standard mounting hardware included Desktop, ceiling, and wall mount capable Ceiling tile rail (9/16, 15/16 or 1 1⁄2” flush or recessed rails), assorted cable junction boxes Bubble level on mounting cradle for accurate horizontal wall mounting
Physical Security	Two security screw options (included) (10 mm long and 2.5 mm diameter and 4.7 mm head) Kensington lock hard point Concealed mount plate with anti-tamper cable bay
Environment	Operating temperature: 32 °F to 104 °F (0 °C to 40 °C) Humidity: 5 to 95% non-condensing
Physical Dimensions	9.84” x 4.72” x 1.42” (25 cm x 12 cm x 3.6 cm), not including desk mount feet or mount plate Weight: 492 g
Security	Integrated Layer 7 firewall with mobile device policy management Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal Flexible guest access with device isolation VLAN tagging (802.1q) and tunneling with IPsec VPN PCI compliance reporting WEP*, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 – Personal, WPA3 – Enterprise, WPA3 – Enhanced Open (OWE) EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM TKIP and AES encryption Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration Cisco ISE integration for Guest access and BYOD Posturing
Quality of Service	Advanced Power Save (U-APSD) WMM Access Categories with DSCP and 802.1p support Layer 7 application traffic identification and shaping
Mobility	PMK, OKC, & 802.11r for fast Layer 2 roaming Distributed or centralized layer 3 roaming
Analytics	Embedded location analytics reporting and device tracking Global L7 traffic analytics reporting per network, per device, & per application
LED Indicators	1 power/booting/firmware upgrade status
Regulatory	RoHS For additional country-specific regulatory information, please contact Meraki sales
Warranty	Lifetime hardware warranty with advanced replacement included
Ordering Information	MR36-HW: Meraki MR36 Cloud Managed 802.11ax AP MA-PWR-30W-XX: Meraki AC Adapter for MR Series (XX = US/EU/UK/AU) MA-INJ-4-XX: Meraki Gigabit 802.3at Power over Ethernet Injector (XX = US/EU/UK/AU) MA-INJ-5-XX: Meraki Multigigabit 802.3at Power over Ethernet Injector (XX = US/EU/UK/AU) Note: Meraki access point license required.
Compliance and Standards
IEEE Standards	802.11a, 802.11ac, 802.11ax, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11k, 802.11n, 802.11r, and 802.11u
Safety Approvals	CSA and CB 60950 & 62368 Conforms to UL 2043 (Plenum Rating)
Radio Approvals	Canada: FCC Part 15C, 15E, RSS-247 Europe: EN 300 328, EN 301 893 Australia/NZ: AS/NZS 4268 Mexico: IFT, NOM-208 Taiwan: NCC LP0002 For additional country-specific regulatory information, please contact Meraki Sales
EMI Approvals (Class B)	Canada: FCC Part 15B, ICES-003 Europe: EN 301 489-1-17, EN 55032, EN 55024 Australia/NZ: CISPR 22 Japan: VCCI
Exposure Approvals	Canada: FCC Part 2, RSS-102 Europe: EN 50385, EN 62311, EN 62479 Australia/NZ: AS/NZS 2772
