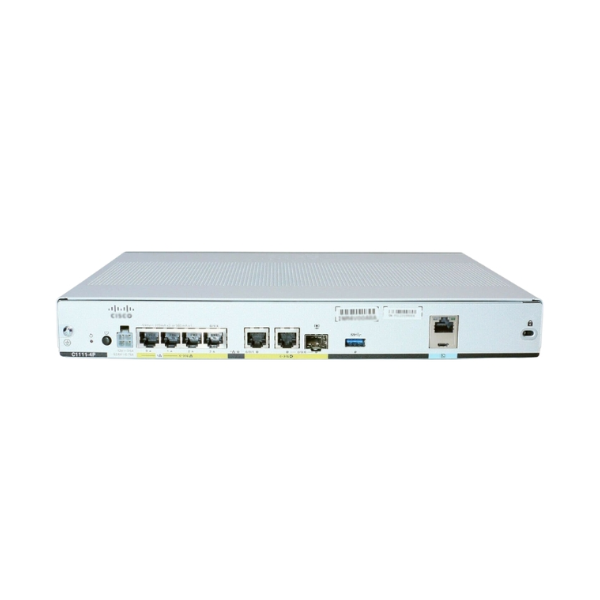

Cisco C1111-4P là một Router Ethernet do Cisco Systems sản xuất, thuộc dòng sản phẩm Cisco ISR 1110 Series. Thiết bị được thiết kế tích hợp nhiều dịch vụ mạng trong một, bao gồm kết nối WAN, bảo mật mạng, định tuyến và các chức năng mạng thiết yếu khác. Cisco C1111-4P thích hợp cho việc triển khai tại các văn phòng chi nhánh vừa và nhỏ, mang lại hiệu quả toàn diện trong một thiết kế gọn nhẹ.
| Feature | Specification | |
| Memory (default and maximum) | DRAM: 4 GB
Flash: 4 GB |
|
| Console | – Micro USB console (USB 3.0). | |
| Mini-USB port (reserved) | – Micro-USB port to support remote LTE diagnostics and monitoring tools (Qualcomm CAIT and Spirent UDM) (USB 3.0). | |
| Authentication and security | – AES for Wi-Fi Protected Access 2 (WPA2).
– 802.1X, RADIUS AAA. – 802.11r. – 802.11i. |
|
| Software | – Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 MR1 or later. | |
| DSL interfaces | – Dying gasp.
– ITU G.993.2 (VDSL2) and supported profiles: 8a, 8b, 8c, 8d, 12a, 12b, and 17a. – VDSL2 Vectoring. – ADSL Annex A and Annex B ITU G. 992.1 (ADSL), G.992.3 (ADSL2), and G.992.5 (ADSL2+). – ADSL Annex M G.992.3 (ADSL2) and G.992.5 (ADSL2+). |
|
| Inline PoE | – Optional internal adapter for inline PoE on 4 switch ports for IP phones or external wireless access points; 802.3af-compliant PoE or 802.3at-compliant PoE+. | |
| External power supply | Product power specifications:
– AC input voltage: Universal 100 to 240 VAC. – Frequency: 50 to 60 Hz. – Maximum output power: 66W (default). – Output voltages: 12 VDC. – Optional PoE and PoE+: ◦ Single 125W power supply required for Cisco 1100-8P router ◦ Single 115W power supply required for Cisco 1100-4P router – External output voltage: 48 VDC. |
|
| USB 3.0 | – USB devices supported:
◦ USB eTokens ◦ USB flash memory – Note: Devices USB 3.0 supports to be connected externally. View the |
|
| LEDs | – WWAN (green/amber).
– SIM status (green/amber). – Received Signal Strength Indication (RSSI) bar (green). – 3G/LTE service (green/amber). – GPS (green/amber). – Speed and link for Gigabit Ethernet WAN port (green). – Speed and link for all Fast Ethernet LAN ports (green). |
|
| Physical dimensions
(H x W x D) |
– 1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) (includes rubber feet on LTE models).
– 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet on non-LTE models). |
|
| Weight | – 5.7 lb (2.59 kg). | |
| Standard safety certifications | – UL 60950-1, 2nd edition.
– CAN/CSA C22.2 No. 60950-1, 2nd edition. – EN 60950-1, 2nd edition. – CB to IEC 60950-1, 2nd edition with all group differences and national deviations. |
|
| EMC emissions | – EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, and EN61000-6-1. | |
| EMC immunity | – EN55024/CISPR24, (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11), and EN300-386. | |
| Radio immunity | – EN301 489-1, EN 301 489-7, and EN301 489-24. | |
| Cellular radio | – EN 301 908-1, EN 301 908-2, EN 301 511, 47 CFR Part 22, 47 CFR Part 24, and EN 301 908-13. | |
| Environmental operating range | – Nonoperating temperature: -4° to 149°F (-0° to 65°C).
– Nonoperating humidity: 5% to 95% relative humidity (noncondensing). – Nonoperating altitude: 0 to 15,000 ft (0 to 4570 m). – Operating temperature: 32° to 104°F (0° to 40°C). – Operating humidity: 10% to 85% relative humidity (noncondensing). – Operating altitude: 0 to 10,000 ft (0 to 3000 m). |
|
