Catalyst 1300 12-port 10GE, 12-port SFP+

74.520.000₫

Mã SP: C1300-24XTS

Thương hiệu: CISCO

74.520.000đ(Giá đã bao gồm VAT)

Mô tả sản phẩm

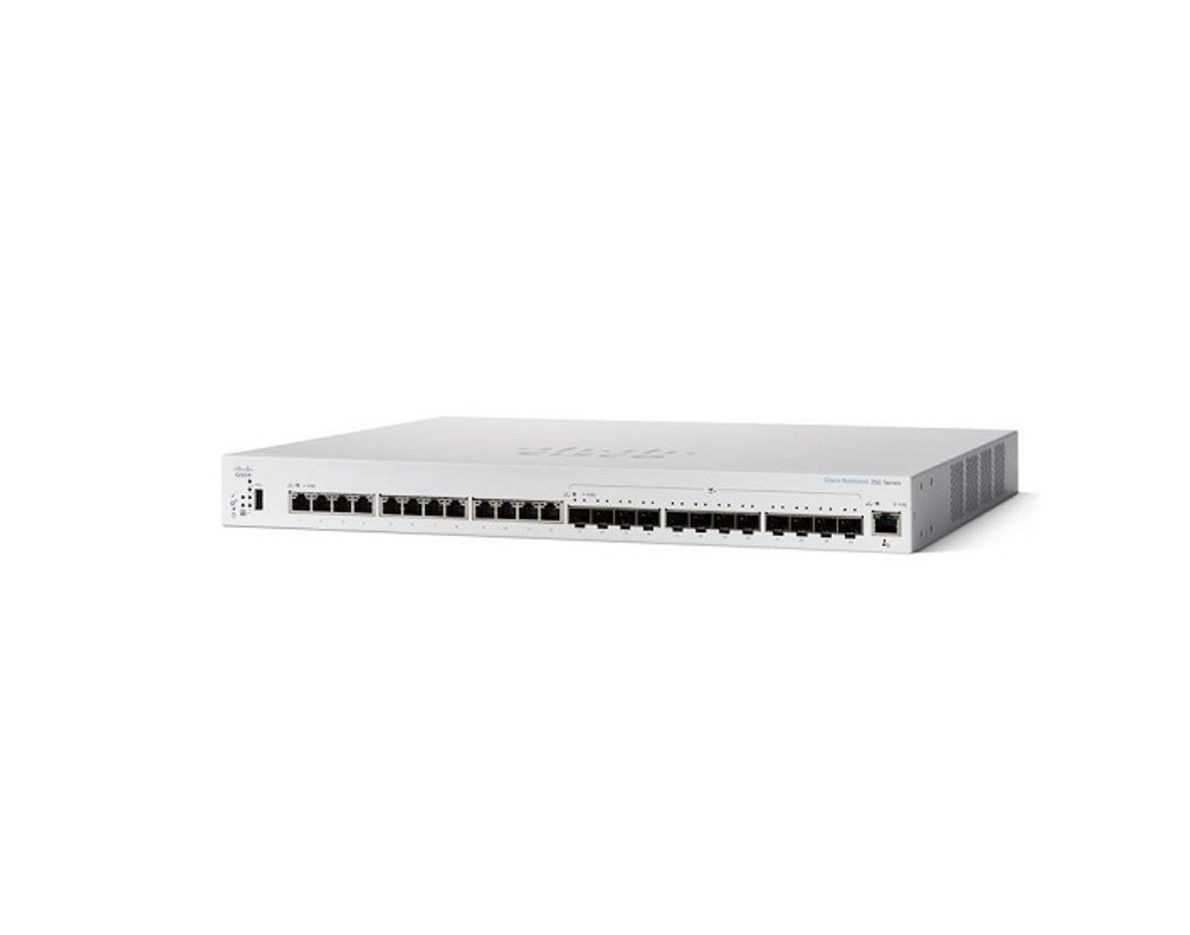

Switch Cisco C1300-24XTS là thiết bị chuyển mạch layer 3 được quản lý thuộc dòng Cisco Catalyst 1300, phù hợp để sử dụng trong các doanh nghiệp vừa và nhỏ với khả năng triển khai và quản lý nhanh chóng. Thiết bị này cung cấp 12 cổng 10G đồng và 12 cổng 10G SFP+, mang lại hiệu suất chuyển mạch vượt trội cùng khả năng kết nối mạnh mẽ.

Switch Cisco C1300-24XTS cũng được trang bị các tính năng bảo mật tiên tiến để tăng cường bảo vệ hệ thống mạng. Hơn nữa, tính năng xếp chồng cho phép thiết bị đơn giản hóa việc quản lý, đồng thời nâng cao khả năng mở rộng và phục hồi mạng hiệu quả.

Thông số kỹ thuật

Specifications
Port	12 x 10 Gigabit copper ports 12 x 10 Gigabit SFP+ (dedicated) 1 x GE management port Rack-mountable
Console port	Cisco standard RJ-45 console port and USB Type C port
USB port	USB Type C port on the front panel of the switch for easy file and image management as well as console port
Performance
Switching capacity in Gigabits per second (Gbps)	480 Gbps
Capacity in Millions of Packets Per Second (mpps) (64-byte packets)	240 Mpps
Hardware
CPU	ARM dual-core at 1.4 GHz
DRAM	1 GB DDR4
Flash	512 MB
Packet buffer	3 MB
Buttons	Reset button
Cabling type	Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs	System, Link/Act, PoE, Speed
Feature
Spanning Tree Protocol	Standard 802.1d Spanning Tree support Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default Multiple Spanning Tree instances using 802.1s (MSTP); 8 instances are supported Per-VLAN Spanning Tree Plus (PVST+) and Rapid PVST+ (RPVST+); 126 instances are supported
Port grouping/link aggregation	Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP) ● Up to 8 groups ● Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
VLAN	Support for up to 4093 VLANs simultaneously Port-based and 802.1Q tag-based VLANs, MAC-based VLAN, protocol-based VLAN, IP subnet-based VLAN Management VLAN Private VLAN with promiscuous, isolated, and community port Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks Guest VLAN, unauthenticated VLAN Dynamic VLAN assignment via RADIUS server along with 802.1X client authentication Customer premises equipment (CPE) VLAN Auto surveillance VLAN (ASV)
Voice VLAN	Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers networkwide zero-touch deployment of voice endpoints and call control devices
Multicast TV VLAN	Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. This feature is also known as Multicast VLAN Registration (MVR)
IPv4 routing	Wire-speed routing of IPv4 packets Up to 990 static routes and up to 128 IP interfaces
IPv6 routing	Wire-speed routing of IPv6 packets
Layer 3 interface	Configuration of a Layer 3 interface on a physical port, LAG, VLAN interface, or loopback interface
Routing Information Protocol (RIP) v2	Support for RIP v2 for dynamic routing
Policy-Based Routing (PBR)	Flexible routing control to direct packets to a different next hop based on an IPv4 or IPv6 Access Control List (ACL)
DHCP server	Switch functions as an IPv4 DHCP server, serving IP addresses for multiple DHCP pools or scopes Support for DHCP options
Hardware stacking	Up to 8 switches in a stack. Up to 200 ports managed as a single system with hardware failover
High availability	Fast stack failover delivers minimal traffic loss. Support for LAG across multiple units in a stack
Environmental
Power	100-240V 50-60 Hz
Certification	UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature	23° to 122°F (-5° to 50°C)
Storage temperature	-13° to 158°F (-25° to 70°C)
Operating humidity	10% to 90%, relative, noncondensing
Storage humidity	10% to 90%, relative, noncondesing
