CBS350-48P-4G-EU
22.021.200₫

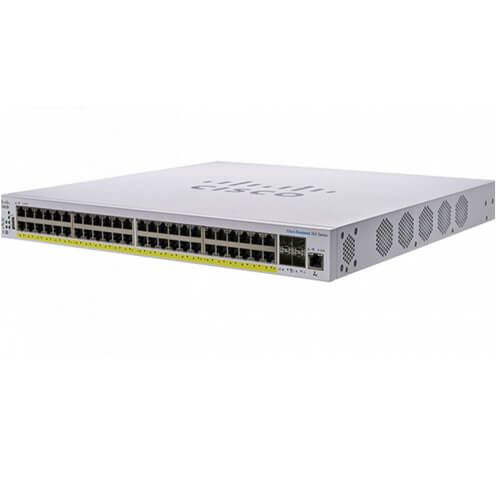

Cisco CBS350-48P-4G-EU là thiết bị chuyển mạch có quản lý thuộc dòng Cisco Business 350 Series, được thiết kế để cung cấp giải pháp mạng toàn diện với hiệu suất cao và chi phí hợp lý. Thiết bị được trang bị 48 cổng Gigabit Ethernet (10/100/1000) hỗ trợ PoE+ với tổng công suất 370W cùng 4 cổng uplink SFP 1G, mang đến khả năng kết nối mạnh mẽ và linh hoạt cho nhiều nhu cầu trong doanh nghiệp.
Switch CBS350-48P-4G-EU sở hữu thiết kế nhỏ gọn với tông màu trắng hiện đại, vừa tinh tế vừa tiết kiệm không gian lắp đặt. Thiết bị mang lại hiệu suất vượt trội, tính bảo mật cao cùng bộ tính năng quản lý toàn diện, hỗ trợ tối ưu cho việc giám sát, kết nối và truyền tải dữ liệu. Đặc biệt, với tính năng truestacking, nhiều switch có thể được hợp nhất thành một stack và quản lý tập trung như một thiết bị duy nhất thông qua một địa chỉ IP, giúp việc vận hành và khắc phục sự cố trở nên đơn giản hơn.
Ngoài ra, Cisco CBS350-48P-4G-EU hỗ trợ cài đặt và cấu hình dễ dàng, tích hợp bảng điều khiển cấp doanh nghiệp, hỗ trợ IPv6 và khả năng quản lý nâng cao ở Layer 3, cho phép tối ưu hóa lưu lượng mạng hiệu quả hơn. Thiết bị còn được trang bị các tính năng tiết kiệm năng lượng, giúp giảm chi phí vận hành mà vẫn đảm bảo hiệu suất ổn định và bền vững lâu dài cho doanh nghiệp.
| Performance | |
| Capacity in Millions of Packets per Second (mpps) (64-byte packets) | 77.38 |
| Switching Capacity in Gigabits per Second (Gbps) | 104.0 |
| Layer 2 Switching | |
| Spanning Tree Protocol | Standard 802.1d Spanning Tree support
Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default Multiple Spanning Tree instances using 802.1s (MSTP); 8 instances are supported Per-VLAN Spanning Tree Plus (PVST+) and Rapid PVST+ (RPVST+); 126 instances are supported |
| Port grouping/link aggregation | Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP) – Up to 8 groups – Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation |
| VLAN | Support for up to 4,094 VLANs simultaneously Port-based and 802.1Q tag-based VLANs; MAC-based VLAN; protocol-based VLAN; IP subnet-based VLAN Management VLAN Private VLAN with promiscuous, isolated, and community port Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks Guest VLAN, unauthenticated VLAN Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication CPE VLAN |
| Voice VLAN | Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Auto voice capabilities deliver network wide zero-touch deployment of voice endpoints and call control devices |
| Multicast TV VLAN | Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. This feature is also known as Multicast VLAN Registration (MVR) |
| VLAN Translation | Support for VLAN One-to-One Mapping. In VLAN One-to-One Mapping, on an edge interface customer VLANs (C-VLANs) are mapped to service provider VLANs (S-VLANs) and the original C-VLAN tags are replaced by the specified S-VLAN |
| Q-in-Q | VLANs transparently cross a service provider network while isolating traffic among customers |
| Selective Q-in-Q | Selective Q-in-Q is an enhancement to the basic Q-in-Q feature and provides, per edge interface, multiple mappings of different C-VLANs to separate S-VLANs Selective Q-in-Q also allows configuring of Ethertype (Tag Protocol Identifier [TPID]) of the S-VLAN tag Layer 2 protocol tunneling over Q-in-Q is also supported |
| Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP) | Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) enable automatic propagation and configuration of VLANs in a bridged domain |
| Unidirectional Link Detection (UDLD) | UDLD monitors physical connection to detect unidirectional links caused by incorrect wiring or cable/port faults to prevent forwarding loops and black holing of traffic in switched networks |
| Dynamic Host Configuration Protocol (DHCP) Relay at Layer 2 | Relay of DHCP traffic to DHCP server in different VLAN; works with DHCP Option 82 |
| Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping | IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 2K multicast groups (source-specific multicasting is also supported) |
| IGMP Querier | IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router |
| Head-of-Line (HOL) blocking | HOL blocking prevention |
| Loopback Detection | Loopback detection provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP |
| Layer 3 | IPv4 routing – Wirespeed routing of IPv4 packets – Up to 990 static routes and up to 128 IP interfaces IPv6 routing Layer 3 Interface -Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface Classless Interdomain Routing (CIDR) Policy-Based Routing (PBR) DHCP Server DHCP relay at Layer 3 User Datagram Protocol (UDP) relay |
| Security | Secure Shell (SSH) Protocol Secure Sockets Layer (SSL) IEEE 802.1X (Authenticator role) Web-based authentication STP Bridge Protocol Data Unit (BPDU) Guard STP Root Guard STP loopback guard DHCP snooping IP Source Guard (IPSG) Dynamic ARP Inspection (DAI) IP/MAC/Port Binding (IPMB) Secure Core Technology (SCT) Secure Sensitive Data (SSD) Trustworthy systems Private VLAN Layer 2 isolation Private VLAN Edge (PVE) with community VLAN Port security RADIUS/TACACS+ RADIUS accounting Storm control DoS prevention Multiple user privilege levels in CLI ACLs Support for up to 1,024 rules |
| Management | Web user interface SNMP Remote Monitoring (RMON) IPv4 and IPv6 dual stack Firmware upgrade Port mirroring VLAN mirroring DHCP (options 12, 66, 67, 82, 129, and 150) Secure Copy (SCP) Autoconfiguration with Secure Copy (SCP) file download Text-editable config files Smartports Auto Smartports Textview CLI Cloud services Embedded Probe for Cisco Business Dashboard Cisco Network Plug and Play (PnP) agent Localization Login banner Other management |
| Power over Ethernet (PoE) | |
| Power Dedicated to PoE | 370W |
| Number of Ports That Support PoE | 48 |
| Power consumption | |
| System Power Consumption | 110V=60.77W 220V=59.73W |
| Power Consumption (with PoE) | 110V=451.95W 220V=445.85W |
| Heat Dissipation (BTU/hr) | 1,542.12 |
| Hardware | |
| Total System Ports | 52 Gigabit Ethernet |
| RJ-45 Ports | 48 Gigabit Ethernet |
| Combo Ports(RJ 45 + Small form-factor pluggable [SFP]) | 4 SFP |
| Console port | Cisco Standard mini USB Type-B / RJ45 console port |
| USB slot | USB Type-A slot on the front panel of the switch for easy file and image management |
| Buttons | Reset button |
| Cabling type | Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T |
| LEDs | System, Link/Act, PoE, Speed |
| Flash | 256 MB |
| CPU | 800 MHz ARM |
| Packet buffer | 3 MB |
| Environmental | |
| Unit dimensions (W x H x D) | 445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in) |
| Unit weight | 5.43 kg (11.97 lb) |
| Power | 100-240V 50-60 Hz, internal, universal |
| Certification | 23° to 122°F (-5° to 50°C) |
| Storage temperature | -13° to 158°F (-25° to 70°C) |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 10% to 90%, relative, noncondensing |
| Acoustic noise and Mean Time Between Failure (MTBF) | |
| FAN | 1 |
| Acoustic Noise | 25°C: 37.3 dBA |
| MTBF at 25°C (hours) | 856,329 |
